Basic Settings
Page setup has various options for your page you want to print like Preview mode, Printer, Page size, spacing, margins etc.
Orientation: You can also decide the Orientation for your page setup which is what kind of page layout you want i.e Landscape or Portrait.
Measurement: Users also have the option to choose the height and width of the page. Unit of the measurement can also be chosen between Inches, Centi meter or Milli meter.

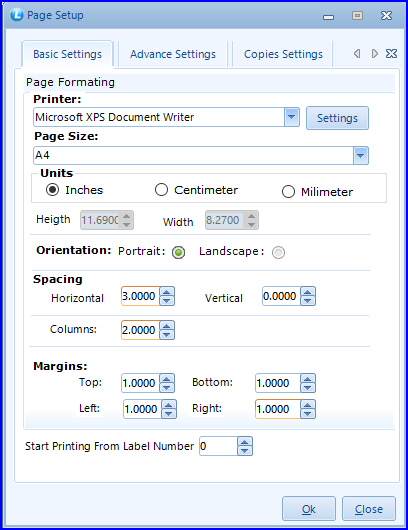

FIG 1. PAGE SETUP
Advanced Settings
Advanced settings in the Page Setup simply provides you with additional options to modify your barcode page as per your requirements.
Output Quality: In this option you can decide the overall quality of the barcode design before deciding the print quality. Higher the quality here the longer it will take to process your barcode. You can set it to normal and relate to the default quality of the printer.
Print Quality: As the name tells you Print Quality tells you the resolution of the printed page and the same principle that applied to the Output Quality applies here i.e Higher the Quality the longer time it will take to print.
Output Color: Output Color lets you decide the color scheme of the barcode page i.e Unknown. Color, Grayscale, Monochrome.
Print Batch Size: Printing in batches is best used for printing large number of labels. The figure seen below tells you clearly the use of this option in the barcode page setup and the user is advised to increase the Print Batch Size in accordance with the number of labels needed. If you put quantity in this option greater than zero and increase the size as the quantity of label goes up your system will not slow down.
Print Separate Process: Print/Preview process runs in separate workspace. This option is recommended for large number of labels. As the figure seen below tells the user this option is used for large number of labels to avoid over loading the user's system and let the system work smoothly working on one page setup at a moment.

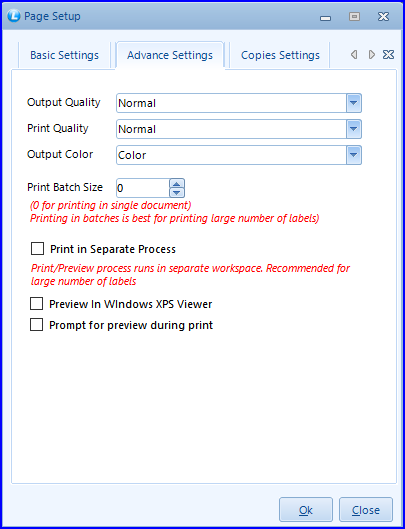

FIG 2. PAGE SETUP
