Allocating & Deallocating Accounts To Group

Previous pageReturn to chapter overviewNext page



To add the Accounts to newly created Group Right , Click the mouse on the group. A small popup window will open which facilitates the user to Add Account(s) , Delete Account(s).






Contents



bullet-arrow2   Allocating Accounts To Group



bullet-arrow2   Deallocating Accounts To Group




Allocating Accounts To The Group



bullet01 To allocate the account, the user can select the account name which they want to allocate to the group.



bullet01 After selecting the account right click the mouse and choose the option Allocate Items/Groups.

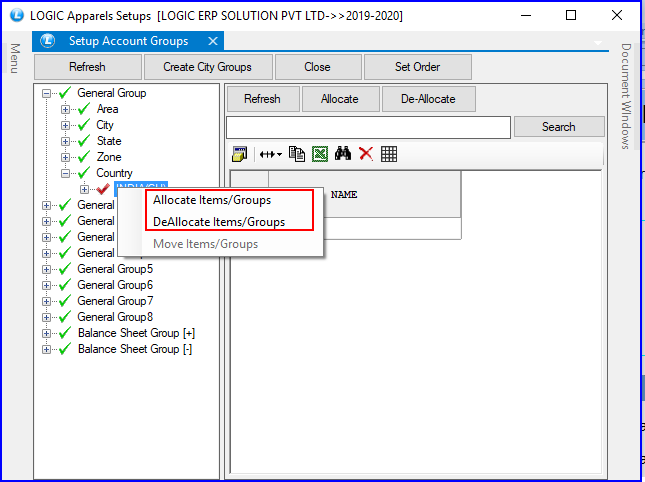

LogicAFS-22



Fig 1. Setup Account Groups



Back To Top

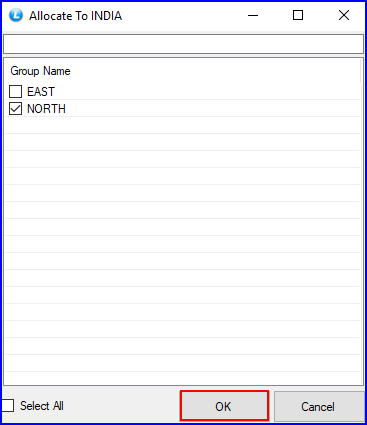

bullet01 Below given pop up will come and then select the account name which you want to allocate to the group.



LogicAFS-23



Fig 2. Allocate Groups



Back To Top

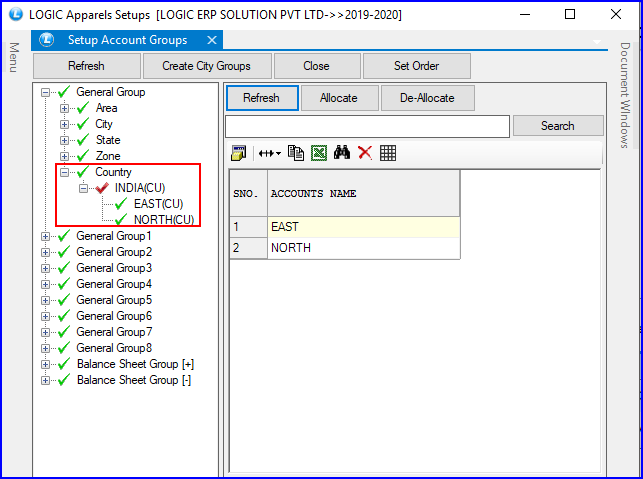

bullet01 After selection of the account, the account will come under the group.



LogicAFS-24



Fig 3. Setup Account Groups



Back To Top

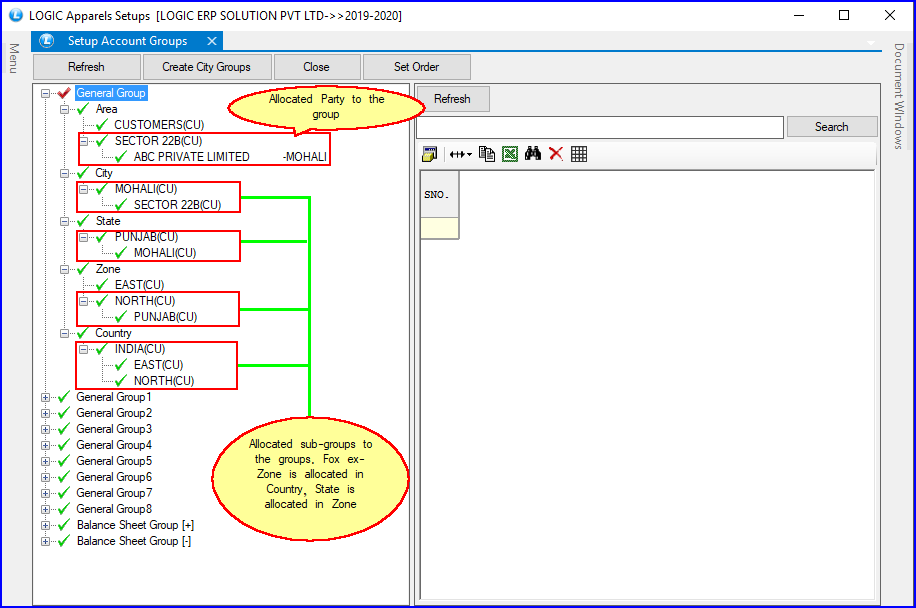

bullet01 Following is the final account group tree.



    LogicAFS-SetupAccGrps



Fig 4. Setup Account Groups



Back To Top




Deallocating Accounts To The Group



bullet01 To deallocate the account, the user can select the the account name which they want to deallocate from the group.



bullet01 After selecting the account right click the mouse and choose the option Deallocate Items/Groups.

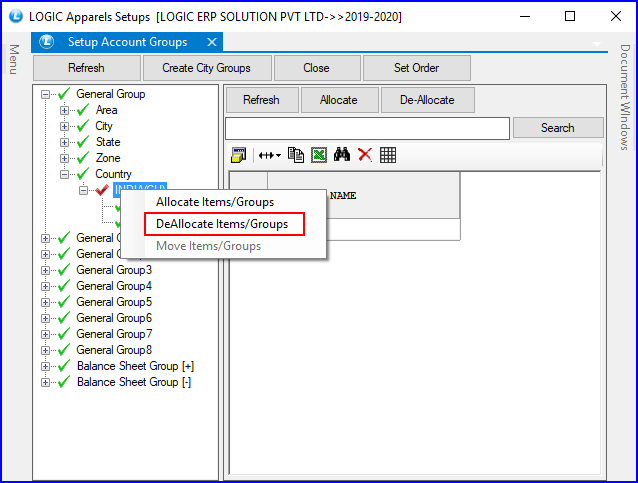

LogicAFS-25



Fig 5. Setup Account Groups



Back To Top

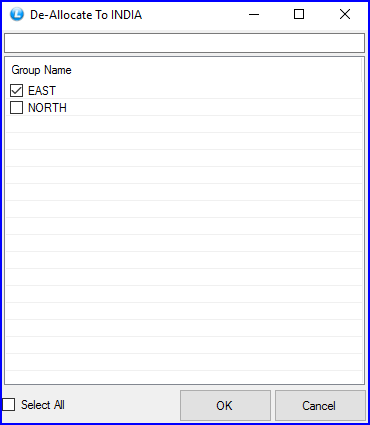

bullet01 Below given pop up will come and then select the account name which you want to deallocate from the group.



Setup Account Gps-7



Fig 6. De allocate Groups



Back To Top
