Navigation:  LOGIC Report Mailer > Setup Report Group

 Using these settings, you can create the groups of the reports that you want to view in your device. After selecting your company, click on Report settings icon.

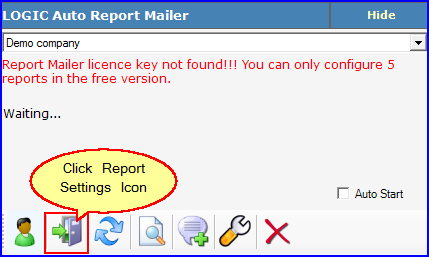

Fig.1 Report Settings



---

Add Group



To add new group, follow the given steps:



 In the Setup Group Settings window, right-click on GROUPS option and select Add Group option.

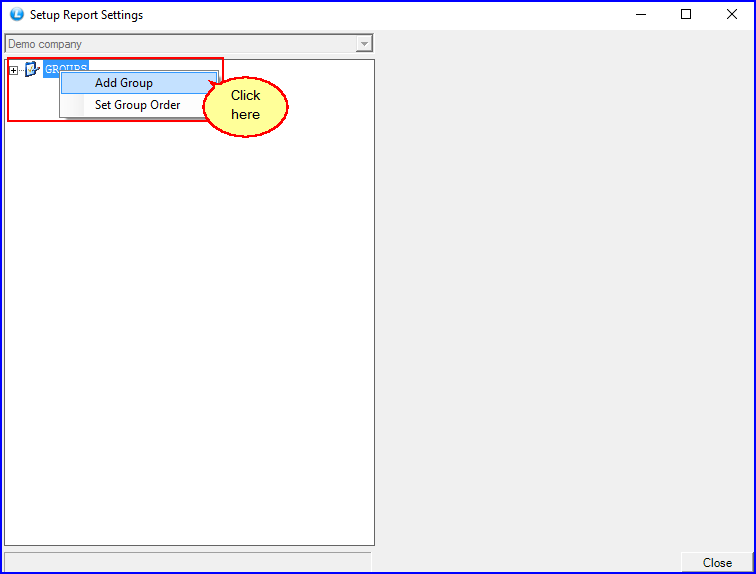

Fig.2 Add Group



 In the Report Mailer Group Settings, enter the following details:



   Group Name

  Report Local Folder

   Specify the Report Format

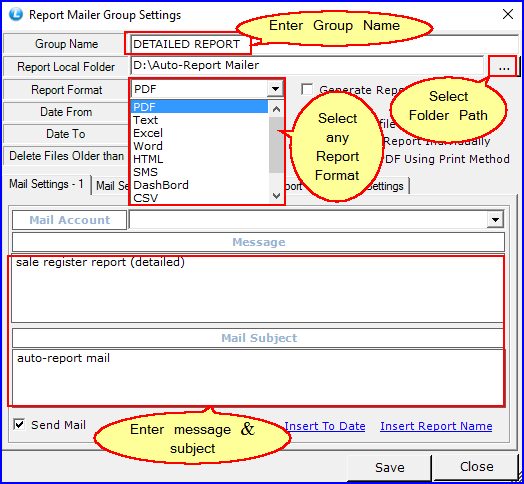

Fig.3 Report Mailer Group Settings





 Now, click the Mail Settings-2, and enter the email-id to which you want to send the report.





Fig.4 Enter Registered Email ID



Back To Top

---

Report Mailer Other Settings



In the report mailer other settings, choose where you want to send the report. Also, select the Publish As File option if you want the report in a file format. There are three ways you can send the report onto:



  Mail: You can send the report to any Email ID, but first, you have to enter your mail server settings.

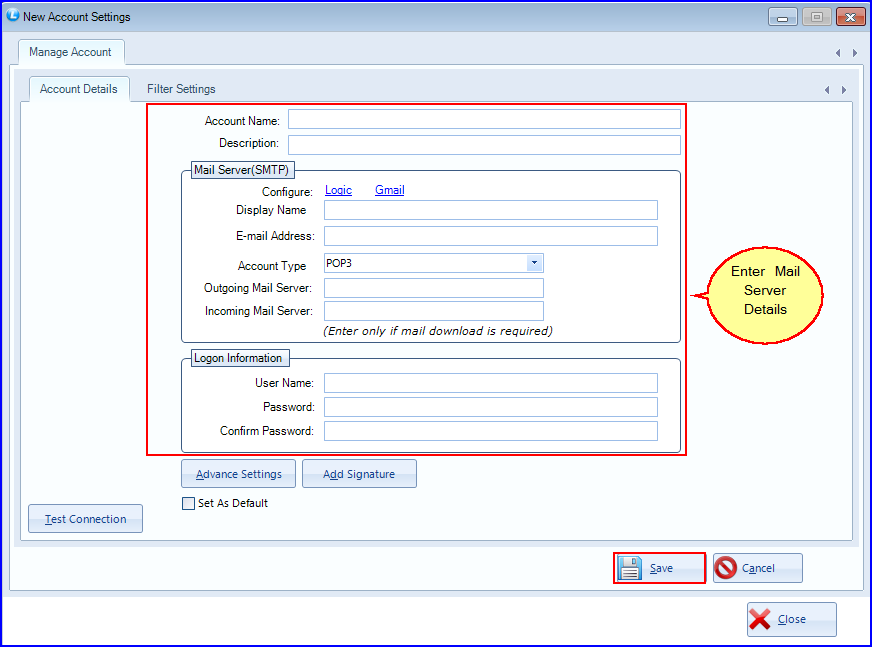

Fig.5 Mail Server Settings



  Ftp: Select this option to receive the report on your FTP server. First, click on 'Setup FTP Setting' button and mention your FTP settings where you want to upload the file.

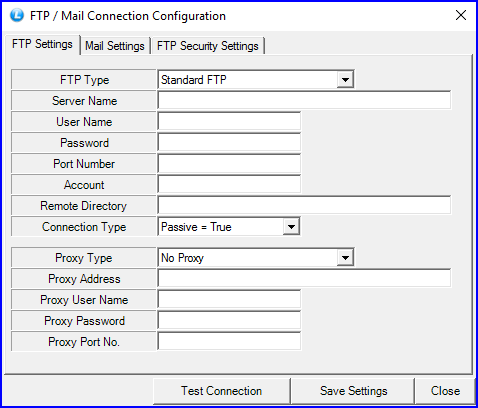

Fig.6 FTP/Mail Connection Configuration



  Publish On Logic Cloud: To view the report on your mobile device, select this option. The report will be sent to LOGIC cloud storage so that you can view it from anywhere and anytime via mobile phone.

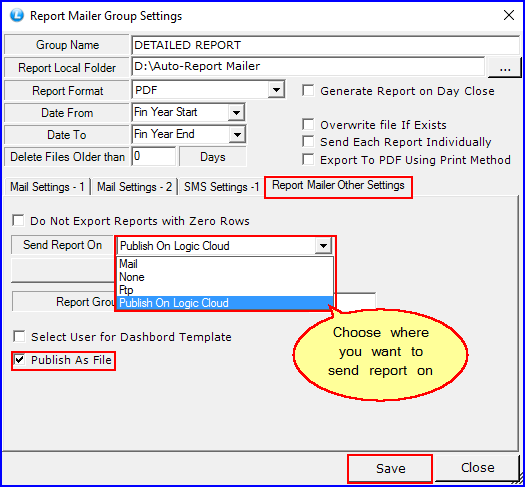

Fig.7 Report Mailer Other Settings





 Click on Save button.
